| 브랜드 이름: | SANROCK POWER |
| 모델 번호: | SP150ZW200-15P |
| 모크: | 1세트 |
| 가격: | Chat with supplier now for more details. |
| 포장에 대한 세부 사항: | 기계 용 누드 패키지, 예비 부품 용 목재 상자 패키지 또는 고객 요구. |
| 지불 조건: | MoneyGram, Western Union, T/T, D/P, D/A, L/C. |

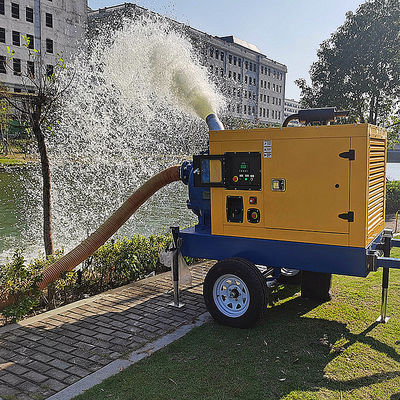

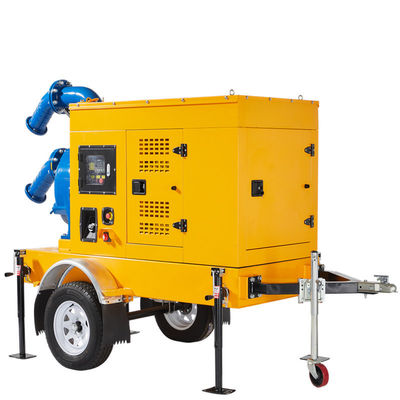

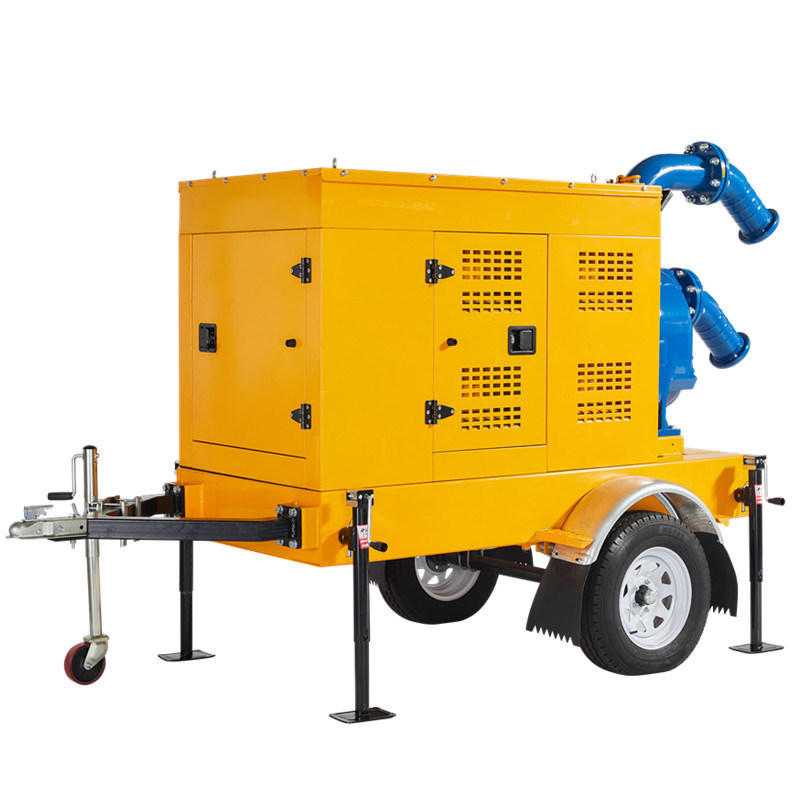

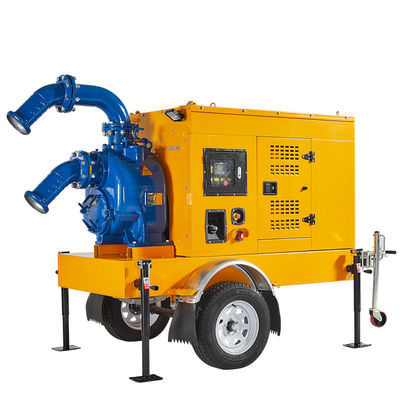

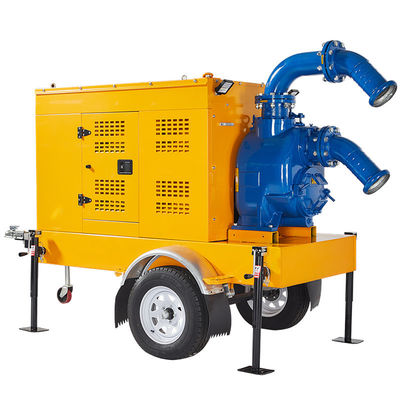

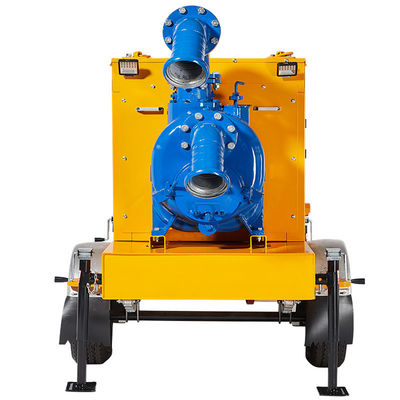

Self-priming sewage pump trailer adopts diesel engine with self-priming sewage pump mobile trailer unit. Supporting diesel engine drive, no external power supply. Diesel engine supporting control system, supporting 2 - wheel or 4 - wheel trailer. It can be applied to urban roads. Mainly used for: underground pipe network drainage, urban waterlogging, emergency flood control, agricultural irrigation, fire emergency rescue, mine drainage, etc
Product Features:
1. Strong self-imbibition: the first irrigation can achieve self-imbibition, self- imbibition 6 meters.
2. Impurity through large amount: wide groove impeller design, impurity through 20% of the caliber
3. Easy to move: supporting mobile trailer, can also move freely in place.
4. Diesel engine: Supporting domestic famous brand diesel engine, long service life, national insurance.
5. The inlet and outlet matching water pipe hose joint is convenient to connect the inlet pipe and the outlet hose.
6. Long working time: equipped with large capacity oil tank, which can be used continuously for a long time.
7. Control system: The control system automatically monitors the diesel engine operation data, monitoring oil temperature, oil pressure, water temperature, speed, etc. If there is abnormal automatic alarm stop. Or optional with remote control system, network coverage can realize remote control.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
Warranty service
Product Description
| NO | Name | Qty | NO | Name | Qty |
| 1 | 2 /4 Wheel trailer | 1 Set | 8 | △Inlet manifold | 1 Set |
| 2 | ※Diesel engine | 1 Set | 9 | △Outlet manifold | 1 Set |
| 3 | △Soundproof box | 1 Set | 10 | △ Inlet quick coupling | 1 Set |
| 4 | ※Diesel engine control system | 1 Set | 11 | △Outlet quick coupling | 1 Set |
| 5 | LED light system | 1 Suit | 12 | △ Inlet pipe | 1 Set |
| 6 | Self priming sewage pump | 1 Set | 13 | △Outlet pipe | 1 Set |
| 7 | Battery | 1 Suit | 14 | Sevice kit | 1 Set |
| Model | SP150ZW200-15P | SP200ZW300-15P | SP250ZW420-20P | SP300ZW1000-10P |
| Flow | 150~200m³/h | 280~350m³/h | 280~420m³/h | 800~1000m³/h |
| Head | 15~20m | 10~15m | 20~28m | 10~14m |
| Diameter | 150mm | 200mm | 250mm | 300mm |
| Diesel engine model | WP2.3D25E200 | WP2.3D33E200 | WP4.1D66E200 | WP4.1D100E200 |
| Diese engine brand | Weichai(Optional brand:Cummins,Deutz,Yuchai,Shangchai etc) | |||
| Intake mode | Suction | Boost pressure | Boost pressure | Inter-cooling |
| Cylinder * strock | 89mm×92mm | 89mm×92mm | 105mm×118mm | 105mm×118mm |
| Control way | Electrical | |||
| Main power | 22/25KW | 30/33KW | 60/66KW | 90/100KW |
| Speed | 1500r/min | |||
| Trailer type | 2 Tyres | 2 Tyres | 4 Tyres | 4 Tyres |
The above parameters are optional, and the actual model selection is selected according to the actual working conditions required by users on site. Some conditions of the data beyond the above technical parameters table, you can consult Olsen pump industry sales engineer. We will provide professional selection service, recommend suitable for your model.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
|
