| 브랜드 이름: | SANROCK POWER |
| 모델 번호: | SPT4A60S-4024T |
| 모크: | 1세트 |
| 가격: | Chat with supplier now for more details. |
| 포장에 대한 세부 사항: | 기계 용 누드 패키지, 예비 부품 용 목재 상자 패키지 또는 고객 요구. |
| 지불 조건: | MoneyGram, Western Union, T/T, D/P, D/A, L/C. |

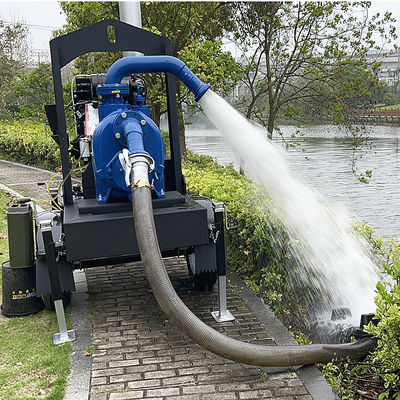

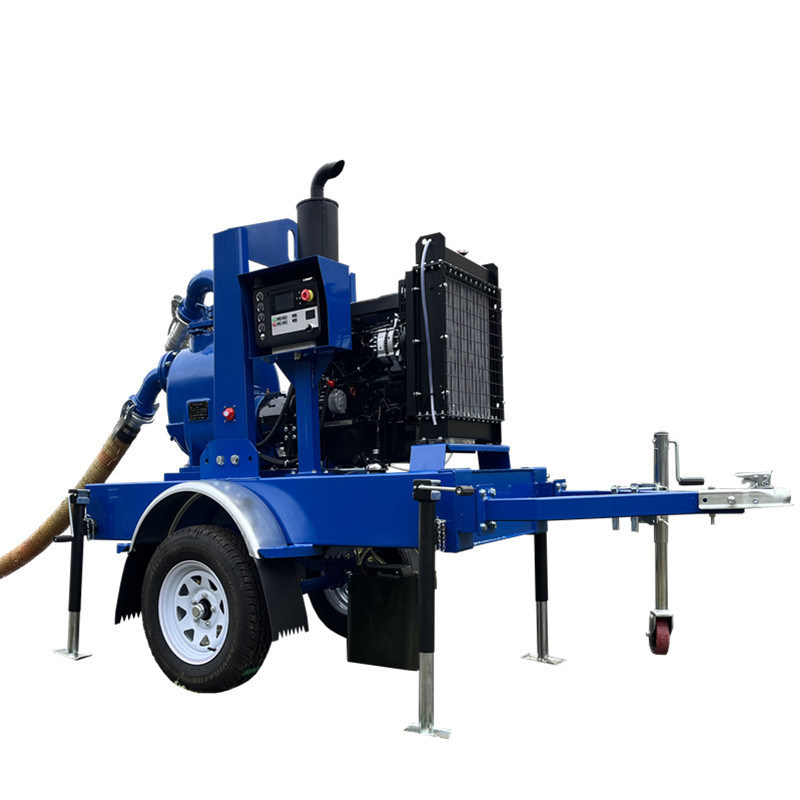

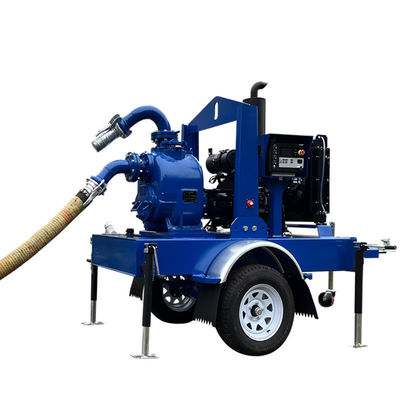

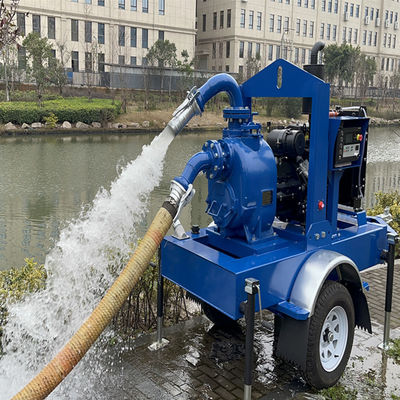

The Self-Priming Trailer-Mounted Fire Pump is a high-efficiency mobile pumping system
designed for rapid emergency response and firefighting operations. It integrates a robust
diesel/gasoline engine with a high-capacity centrifugal pump, mounted on a durable,
corrosion-resistant steel trailer frame. The self-priming feature enables quick startup by
automatically evacuating air from the suction line, allowing immediate water extraction
from open sources like rivers, ponds, or storage tanks without manual priming.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
Warranty service
Product Description
| Size | 4" (100 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm) | ||
| Max capacity | 3500GPM (221lps) | Max head | 140’(43m) |
| Max solids | 3”(76mm) | Max temperature | 160℉(71℃) |
| Materials of construction | Cast iron | Horsepower | 57HP-148HP |
| Item | Size | Casing | Impeller / Rotor | Drive | Flange | Seal |
| SPT4A60S-4024T | 4 x 4 | Cast Iron | Ductile Iron | Diesel Engine | ANSI | Silicon Carbide |
| SPT4A60S-4LE2T FT4 | 4 x 4 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT4A60S-C2.2T FT4 | 4 x 4 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT4A60S-F3L | 4 x 4 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT4A60S-QSF2.8P FT4 | 4 x 4 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-4045T | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-4045T FT4 | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | ANSI Spool | Carbon/Silicon Carbide |
| SPT6A60S-4045T PSO | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-4LE2X FT4 | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-C2.2TA FT4 | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-F4L | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-QSF2.8P FT4 | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A65S-F4L | 6 x 6 | CD4MCu | CD4MCu | Diesel Engine | NPT | Silicon Carbide |
| SPT8A60S-F6L | 8 x 8 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
The above parameters are optional, and the actual model selection is selected according to the actual working conditions required by users on site. Some conditions of the data beyond the above technical parameters table, you can consult Olsen pump industry sales engineer. We will provide professional selection service, recommend suitable for your model.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
|
