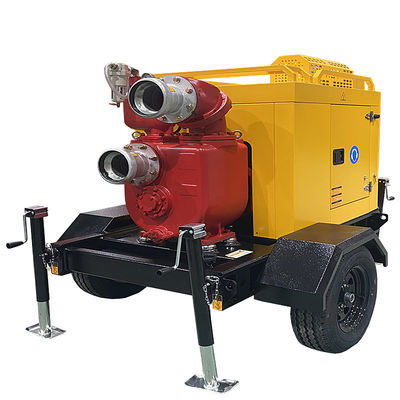

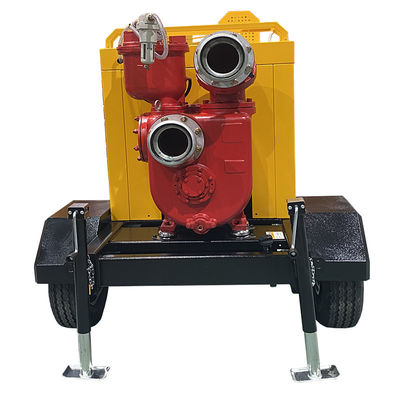

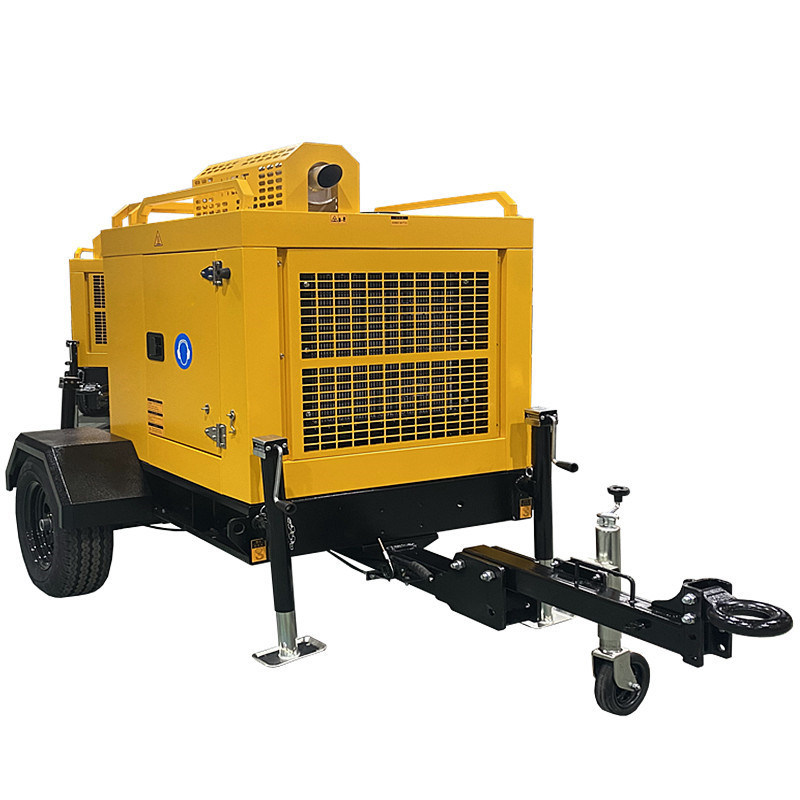

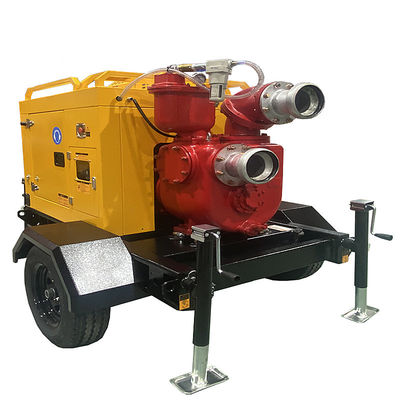

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction

브랜드 이름:	SANROCK POWER
모델 번호:	SP450QZ-25TP
모크:	1 세트
가격:	Chat with supplier now for more details.
포장에 대한 세부 사항:	기계 용 누드 패키지, 예비 부품 용 목재 상자 패키지 또는 고객 요구.
지불 조건:	MoneyGram, Western Union, T/T, D/P, D/A, L/C.

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국 잔기

OEM, ODM, OBM

Document:

디젤 엔진

애플리케이션:

하수 펌프, 슬러리 펌프, 배수 워터 펌프, 관개 펌프 등

제품 이름:

셀프 프라이밍 펌프

긴 일한 삶

다단계 펌프, 단일 단계 펌프, 피스톤 펌프, 펌프의 기타와 일치합니다

Blue, Blue/OEM, 모든 색상, 고객 설계, 고객 요구 사항

전기적 펌프

기계식 펌프

자동 펌프

커플링 유형:

높은 탄성 커플 링 또는 핀 커플 링

펌프 액세서리:

트레일러, 침묵 캐노피, 제어판, 연료 탱크

공급 능력:

100000 세트/월

강조하다:

self priming diesel water pump

small construction water pump

flood control diesel pump

제품 설명

Diesel engine water pump is a compact, portable, and robust pump specifically designed for removing
accumulated water from construction sites, trenches, foundations, and other confined work areas.
Its primary function is to ensure a dry and safe working environment, preventing water damage and
delays in the construction schedule.
Despite its smaller size, it is built to handle tough site conditions, often capable of pumping water containing small solids,
silt, and sand typical of construction runoff. These pumps are typically electrically powered for indoor/controlled sites or
engine-driven (gasoline) for remote locations without power access. Key features include a lightweight design for easy transport
by a single person, automatic float switches for hands-off operation, and durable materials to resist corrosion and abrasion.

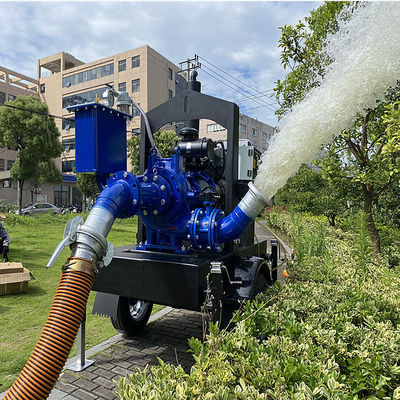

This type of pump is an essential tool for temporary dewatering, managing rainwater, seepage, and minor groundwater ingress,
making it a fundamental piece of equipment for maintaining productivity on any construction project.

Standard scope of Supply
1). Diesel pump unit: Diesel engine, water pump, cooling fan, cooling water tank, steel structure base (including fuel tank 80-120L), battery, connecting wires, exhaust muffler, control panel.
2). Standard design is the pump group, the fuel tank, control panel, battery composite type.
3). Can be designed according to customer requirement pump group, the fuel tank, control panel, battery, outdoor rainproof cabinet composite outdoor type.
4). Can be designed according to customer requirement trailer (four or two wheels) moveable type.

Structural characteristics
Pump shell, impeller, made of ductile iron or alloy material;
With access port, easy to daily maintenance;
Mechanical seal made of silicon carbide material;
Front and rear wear discs with rubber;
The whole body laser cutting, automatic welding, phosphating spray treatment.


Can you do OEM for me?We accept all OEM orders,just contact us and give me your design. we will offer you a reasonable price and make samples for you ASAP.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will  ship the goods.
Warranty service

Product Description

Model	SP450QZ-25TP	SP700QZ-20TP	SP1000QZ-20TP	SP1500QZ-20TP	SP2000QZ-15TP
Inlet & Outlet Port(mm)	150	200	250	250	350
Max.Flow (m3/h)	450m3/h	700m3/h	1000m3/h	1500m3/h	2000m3/h
Max.Flow (m3/h)	(DN150)	(DN200)	(DN200*2)	(DN200*3)	(DN200*4)
Max.Head (m)	25	20	20	20	20
Speed (rpm)	1500	1500	1500	1500	1500
Solid Handing (mm)	76	76	76	76	76
Size LWH (mm)	200016501765	281017301960	330019202400	292017602050	350021002300

The above parameters are optional, and the actual model selection is selected according to the actual working conditions required by users on site. Some conditions of the data beyond the above technical parameters table, you can consult Olsen pump industry sales engineer. We will provide professional selection service, recommend suitable for your model.

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 11

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 12

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 13

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 14

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 15

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 16

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 17

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 18

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 19

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 20

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 21

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 22

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 23

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 24

Flood Control Water Pump Reliable Self Priming Pump Small Diesel Motor Pump for Construction 25

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
