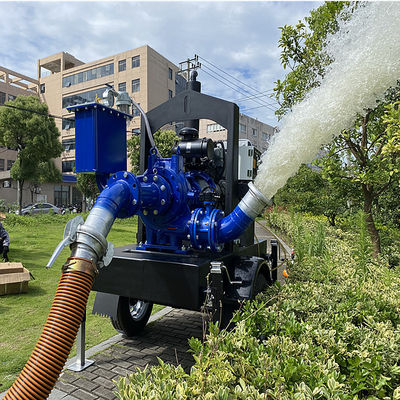

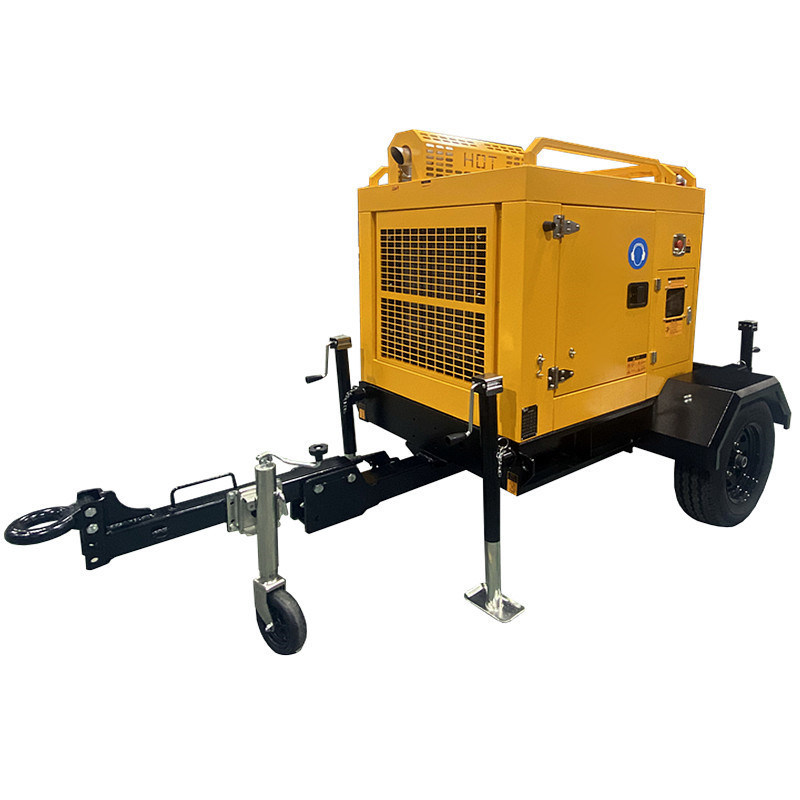

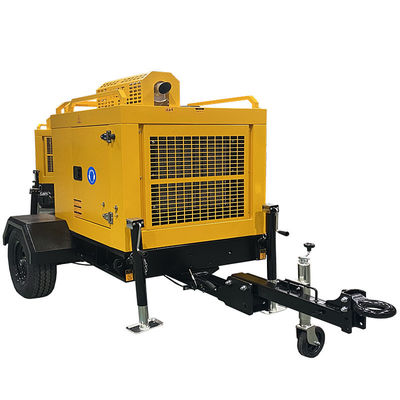

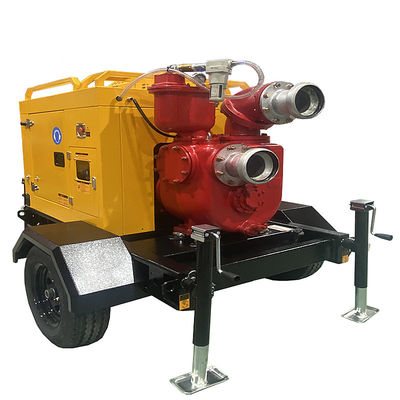

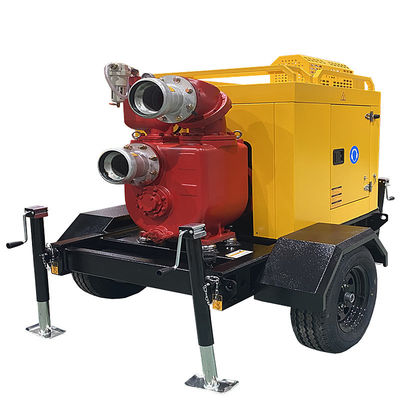

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump

브랜드 이름:	SANROCK POWER
모델 번호:	SP450QZ-25TP
모크:	1 세트
가격:	Chat with supplier now for more details.
포장에 대한 세부 사항:	기계 용 누드 패키지, 예비 부품 용 목재 상자 패키지 또는 고객 요구.
지불 조건:	MoneyGram, Western Union, T/T, D/P, D/A, L/C.

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국 잔기

OEM, ODM, OBM

Document:

디젤 엔진

애플리케이션:

하수 펌프, 슬러리 펌프, 배수 워터 펌프, 관개 펌프 등

제품 이름:

셀프 프라이밍 펌프

긴 일한 삶

다단계 펌프, 단일 단계 펌프, 피스톤 펌프, 펌프의 기타와 일치합니다

Blue, Blue/OEM, 모든 색상, 고객 설계, 고객 요구 사항

전기적 펌프

기계식 펌프

자동 펌프

커플링 유형:

높은 탄성 커플 링 또는 핀 커플 링

펌프 액세서리:

트레일러, 침묵 캐노피, 제어판, 연료 탱크

공급 능력:

100000 세트/월

강조하다:

self priming mud water pump

76mm mobile water pump

high pressure water pump set

제품 설명

A self-priming slurry and sewage pump is a heavy-duty industrial pump engineered to handle the most challenging mixtures
of thick, abrasive slurries, viscous fluids, and raw sewage containing high solid content.
Its core innovation is a powerful self-priming mechanism that automatically evacuates air and primes the pump without manual
intervention, making it ideal for dewatering sumps that frequently run dry.
Constructed with extreme durability in mind, it often features a hardened chrome or tungsten carbide impeller and replaceable
wear plates within a robust cast iron or high-chrome iron casing to withstand severe abrasion and corrosion.
The pump's hydraulic design, typically a recessed vortex or channel impeller, allows for the uninterrupted passage of large solids,
stringy materials, and dense slurries without clogging.
This combination of self-priming capability and rugged construction makes it indispensable for demanding applications in mining,
construction dewatering, industrial waste processing, and municipal wastewater treatment plants where handling thick, abrasive,
and solid-laden waste is a constant requirement.



Standard scope of Supply
1). Diesel pump unit: Diesel engine, water pump, cooling fan, cooling water tank, steel structure base (including fuel tank 80-120L), battery, connecting wires, exhaust muffler, control panel.
2). Standard design is the pump group, the fuel tank, control panel, battery composite type.
3). Can be designed according to customer requirement pump group, the fuel tank, control panel, battery, outdoor rainproof cabinet composite outdoor type.
4). Can be designed according to customer requirement trailer (four or two wheels) moveable type.

Structural characteristics
Pump shell, impeller, made of ductile iron or alloy material;
With access port, easy to daily maintenance;
Mechanical seal made of silicon carbide material;
Front and rear wear discs with rubber;
The whole body laser cutting, automatic welding, phosphating spray treatment.


Can you do OEM for me?We accept all OEM orders,just contact us and give me your design. we will offer you a reasonable price and make samples for you ASAP.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will  ship the goods.
Warranty service

Product Description

Model	SP450QZ-25TP	SP700QZ-20TP	SP1000QZ-20TP	SP1500QZ-20TP	SP2000QZ-15TP
Inlet & Outlet Port(mm)	150	200	250	250	350
Max.Flow (m3/h)	450m3/h	700m3/h	1000m3/h	1500m3/h	2000m3/h
Max.Flow (m3/h)	(DN150)	(DN200)	(DN200*2)	(DN200*3)	(DN200*4)
Max.Head (m)	25	20	20	20	20
Speed (rpm)	1500	1500	1500	1500	1500
Solid Handing (mm)	76	76	76	76	76
Size LWH (mm)	200016501765	281017301960	330019202400	292017602050	350021002300

The above parameters are optional, and the actual model selection is selected according to the actual working conditions required by users on site. Some conditions of the data beyond the above technical parameters table, you can consult Olsen pump industry sales engineer. We will provide professional selection service, recommend suitable for your model.

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 9

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 10

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 11

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 12

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 13

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 14

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 15

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 16

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 17

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 18

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 19

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 20

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 21

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 22

High Quality Water Pressure Pump Solid Handing 76mm Self Priming Mud Pump Mobile Water Pump 23

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
