Equipment Introduction:
The irrigation trailer is an efficient irrigation pump designed with a mixed-flow impeller. After adding the bottom valve, it can directly self-priming with a height of about 3-4 meters. Supporting diesel engine drive, no external power supply. Supporting mobile trailer, can support a variety of different types of traction, suitable for a variety of different types of tractor. Mainly used for: agricultural irrigation, municipal waterlogging. Large diameter pump can be optional multi - inlet and multi - outlet way, convenient field manual quick installation. Optional vacuum system, the unit work, no manual irrigation. To achieve long-distance pumping, vertical self-priming height of 8 meters or horizontal long-distance pumping 20 meters.
Product Features:
1. Large flow: supporting impeller of mixed flow, suitable for irrigation, drainage and other conditions with large flow and low head.
2. Strong self-priming ability: supporting vacuum auxiliary system, can achieve 8 meters vertical height, or 20 meters horizontal distance pumping..
3. Easy to move: the pump car adopts 2 or 4 wheel universal tractor, the front traction can be selected with different types of tow hook, can be matched with different types of vehicle traction;
4. Long working time: equipped with large capacity oil tank, which can be used continuously for a long time.
5. Control system: The control system auto-matically monitors the diesel engine operation data, monitoring oil temperature, oil pressure, water temperature, speed, etc. Or optional with remote control system, network coverage can realize remote control.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
Warranty service
Product Description
| NO | Name | Qty | NO | Name | Qty |
| 1 | Pump | 1 Set | 10 | △Variable speed gear box/ belt | 1 Suit |
| 2 | ※Diesel engine | 1Set | 11 | △Inlet/outlet quick coupling | N Suit |
| 3 | ※Engine control panel | 1 Suit | 12 | △Inlet together | 1 Suit |
| 4 | Battery | 1 Suit | 13 | △Outlet valves | N pcs |
| 5 | Battery case | 1 Pcs | 14 | △Outlet together | 1 Suit |
| 6 | Coupling | 1 Suit | 15 | Inlet pipe | N Suit |
| 7 | With wheels or skid | 1Suit | 16 | Outlet pipe | N pcs |
| 8 | Fuel tank | 1 Pcs | 17 | △Vacuum system | 1 Suit |
| 9 | Inlet foot valves | N Suit | 18 | Tool kit | 1 Suit |
| Model | Flow m³/h | Head m | Power KW | Speed r/min | Inlet/outlet Inch | Multiple in/out inch×Qty | Trailer |
| SPHW150-12P | 200 | 10 | 11 | 2900 | 6" | / | 2 Whees |
| SPHW200-12P | 430 | 10 | 18.5 | 1500 | 8" | / | 2 Whees |
| SPHW250-12P | 660 | 12 | 30 | 1500 | 10" | / | 2 Whees |
| SPHW300-12P | 1200 | 16 | 75 | 1500 | 12" | 8"×2 | 2 Whees |
| SPHW400-15P | 1500 | 15 | 90 | 980 | 16" | 8"×4 | 4 Whees |
| SPHW400-13P | 2300 | 13 | 110 | 980 | 16" | 8"×4 | 4 Whees |
| SPHW400-30P | 2600 | 30 | 285 | 1500 | 16" | 8"×4 | 4 Whees |
| SPHW500-17P | 3350 | 17 | 220 | 980 | 20" | 10"×4 | 4 Whees |
| SPHW650-11P | 5000 | 11 | 220 | 730 | 26" | 10"×6 | 4 Whees |
| SPHW650-20P | 6700 | 20 | 535 | 980 | 26" | 10"×6 | 4 Whees |
| SPHW650-21P | 5000 | 21 | 400 | 730 | 26" | 10"×6 | 4 Whees |
| SPHW800-17P | 7200 | 17 | 480 | 590 | 32" | 10"×10 | Skid |
| SPHW800- 12.5P | 5980 | 12.5 | 250 | 490 | 32" | 10"×10 | Skid |

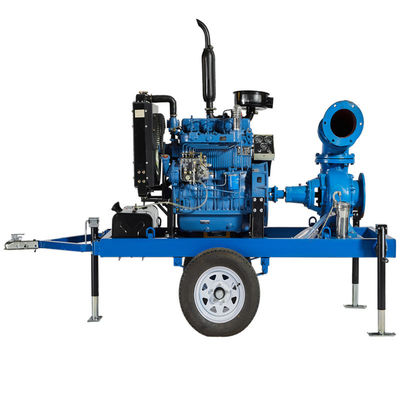

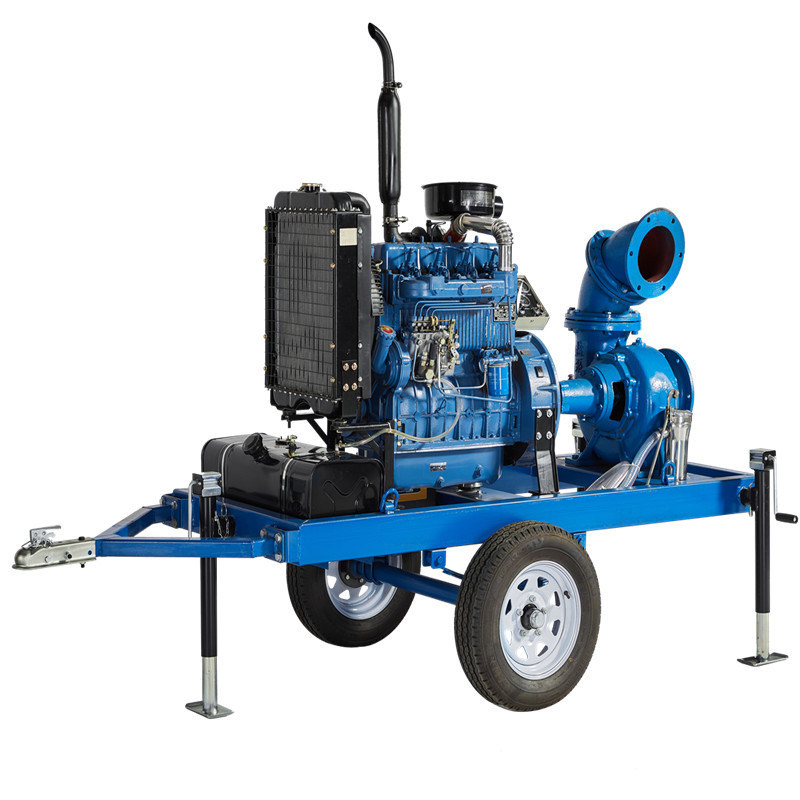

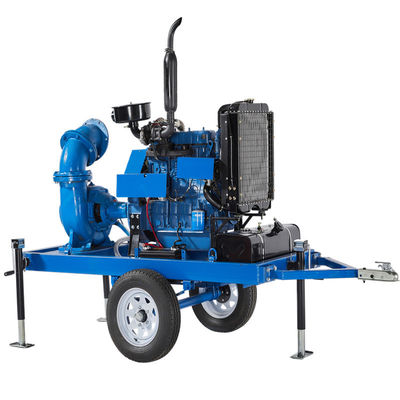

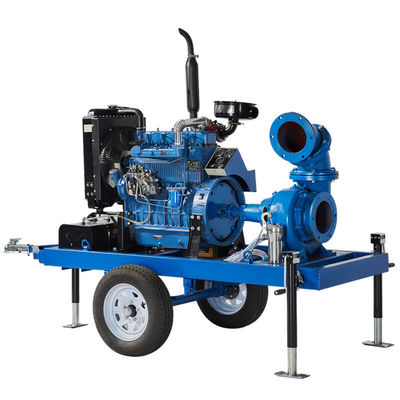

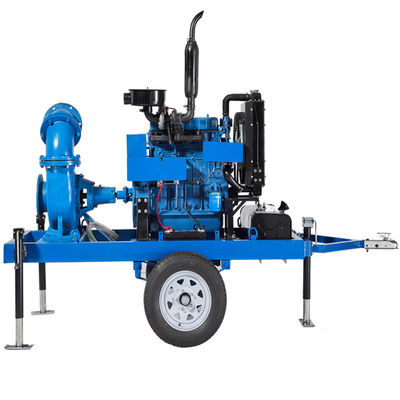

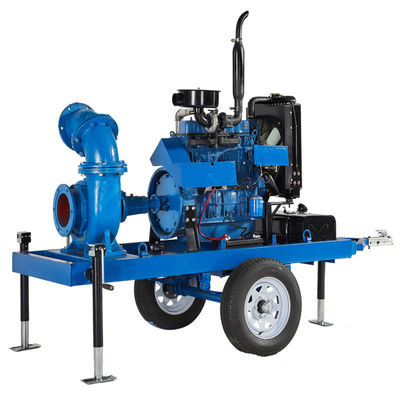

Trailer Mounted Water Pump
High-Volume Transfer Pump: The core of the unit is a powerful, high-capacity pump capable of handling raw sewage,
sludge, and effluent with high solid content. Complete Mobility: it can be quickly deployed to emergency sites,
remote locations, or temporary work camps. Versatile Intake and Discharge: Equipped with various hose and
pipe connections for suction from multiple sources and controlled discharge to tankers, sewer inlets,
or designated treatment areas.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
|
